| Manufacturer Part Number : |

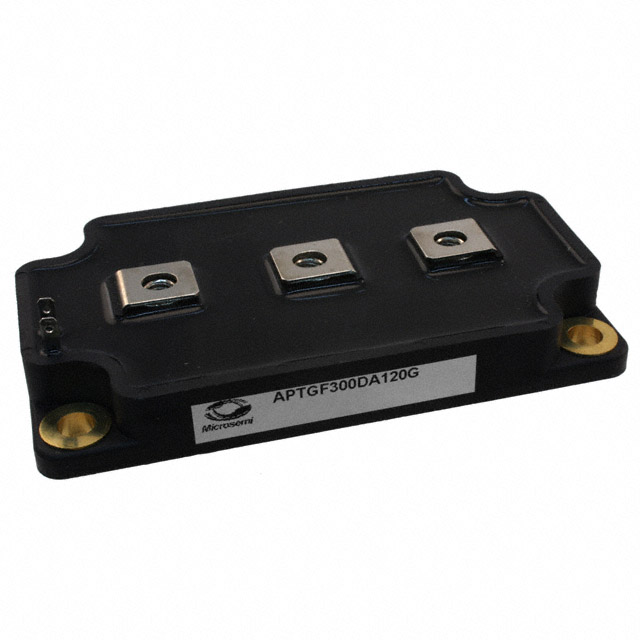

APTGF300DA120G |
| Our Part Number : |
IC-APTGF300DA120G |
| Manufacturer : |
Microsemi Corporation |
| Description : |
IGBT NPT BOOST CHOP 1200V 400A S |
| Series : |
- |
| Part Status : |
Obsolete |
| IGBT Type : |
NPT |
| Configuration : |
Single |
| Voltage - Collector Emitter Breakdown (Max) : |
1200V |
| Current - Collector (Ic) (Max) : |
400A |
| Power - Max : |
1780W |
| Vce(on) (Max) @ Vge, Ic : |
3.9V @ 15V, 300A |
| Current - Collector Cutoff (Max) : |
500μA |
| Input Capacitance (Cies) @ Vce : |
21nF @ 25V |
| Input : |
Standard |
| NTC Thermistor : |
No |
| Operating Temperature : |
- |
| Mounting Type : |
Chassis Mount |
| Package / Case : |
SP6 |
| Supplier Device Package : |
SP6 |
| Other Part Number : |
APTGF300DA120G-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.1657 KG |
APTGF300DA120G.pdf
