| Manufacturer Part Number : |
APTGT100A120D1G |
| Our Part Number : |
IC-APTGT100A120D1G |
| Manufacturer : |
Microsemi Corporation |
| Description : |

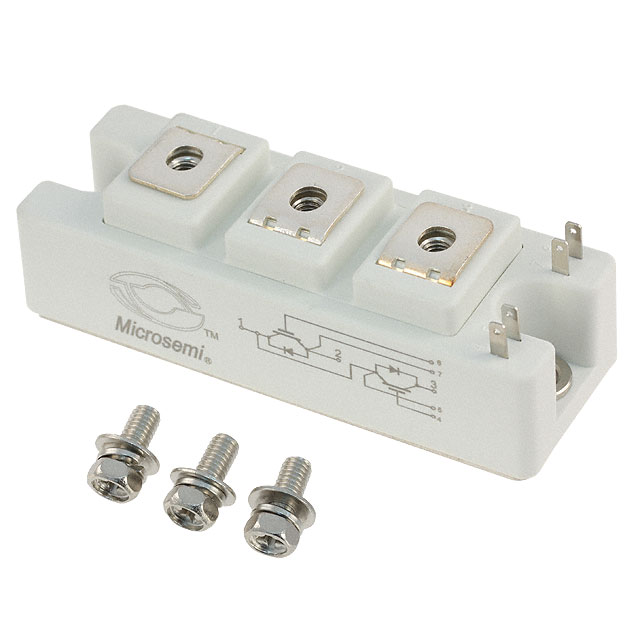

IGBT MODULE TRENCH PHASE LEG D1 |
| Series : |
- |
| Part Status : |
Obsolete |
| IGBT Type : |
Trench Field Stop |
| Configuration : |
Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) : |
1200V |
| Current - Collector (Ic) (Max) : |
150A |
| Power - Max : |
520W |
| Vce(on) (Max) @ Vge, Ic : |
2.1V @ 15V, 100A |
| Current - Collector Cutoff (Max) : |
3mA |
| Input Capacitance (Cies) @ Vce : |
7nF @ 25V |
| Input : |
Standard |
| NTC Thermistor : |
No |
| Operating Temperature : |
- |
| Mounting Type : |
Chassis Mount |
| Package / Case : |
D1 |
| Supplier Device Package : |
D1 |
| Other Part Number : |
APTGT100A120D1G-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.1714 KG |
APTGT100A120D1G.pdf
