| Manufacturer Part Number : |
FGH75T65SQD-F155 |
| Our Part Number : |
IC-FGH75T65SQD-F155 |
| Manufacturer : |
ON Semiconductor |
| Description : |
IGBT 650V 150A 375W TO247 |
| Packaging : |
Tube |
| Series : |
- |
| Part Status : |
Active |
| IGBT Type : |
Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) : |
650V |
| Current - Collector (Ic) (Max) : |
150A |
| Current - Collector Pulsed (Icm) : |
300A |
| Vce(on) (Max) @ Vge, Ic : |
- |
| Power - Max : |
375W |
| Switching Energy : |
760μJ (on), 180μJ (off) |
| Input Type : |
Standard |
| Gate Charge : |
128nC |
| Td (on/off) @ 25°C : |
- |
| Test Condition : |
- |
| Reverse Recovery Time (trr) : |
43ns |
| Operating Temperature : |
-55°C ~ 175°C (TJ) |
| Mounting Type : |
Through Hole |

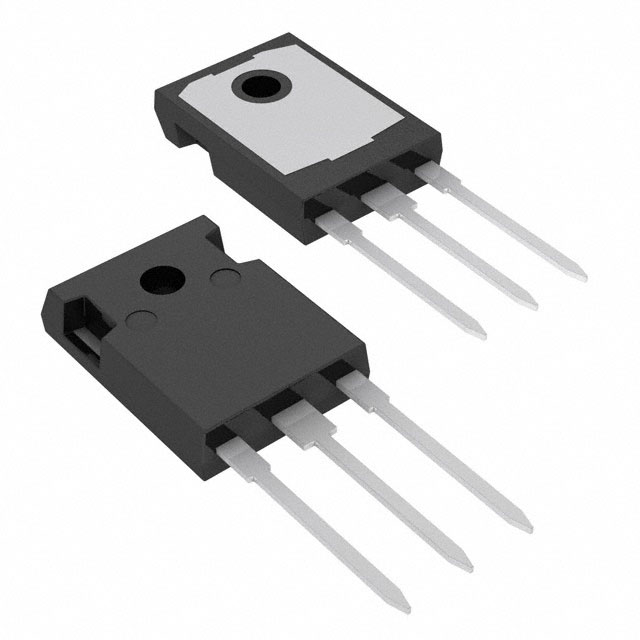

| Package / Case : |
TO-247-3 |
| Supplier Device Package : |
TO-247 |
| Other Part Number : |
FGH75T65SQD-F155-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.2119 KG |
FGH75T65SQD-F155.pdf
