| Manufacturer Part Number : |
ADG772BCPZ-REEL |
| Our Part Number : |
IC-ADG772BCPZ-REEL |
| Manufacturer : |
Analog Devices Inc. |
| Description : |
IC MUX/DEMUX 2X1 10LFCSP |
| Packaging : |
Tape & Reel (TR) |
| Series : |
- |
| Part Status : |
Obsolete |
| Switch Circuit : |
SPDT |
| Multiplexer/Demultiplexer Circuit : |
0.0840277777777778 |
| Number of Circuits : |
2 |
| On-State Resistance (Max) : |
6.7 Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) : |
40 mOhm |
| Voltage - Supply, Single (V+) : |
2.7 V ~ 3.6 V |
| Voltage - Supply, Dual (V±) : |
- |
| Switch Time (Ton, Toff) (Max) : |
12.5ns, 9.5ns |
| -3db Bandwidth : |
630MHz |
| Charge Injection : |
0.5pC |
| Channel Capacitance (CS(off), CD(off)) : |
2.4pF, 6.9pF |
| Current - Leakage (IS(off)) (Max) : |
200pA |
| Crosstalk : |
-90dB @ 1MHz |
| Operating Temperature : |
-40°C ~ 85°C (TA) |

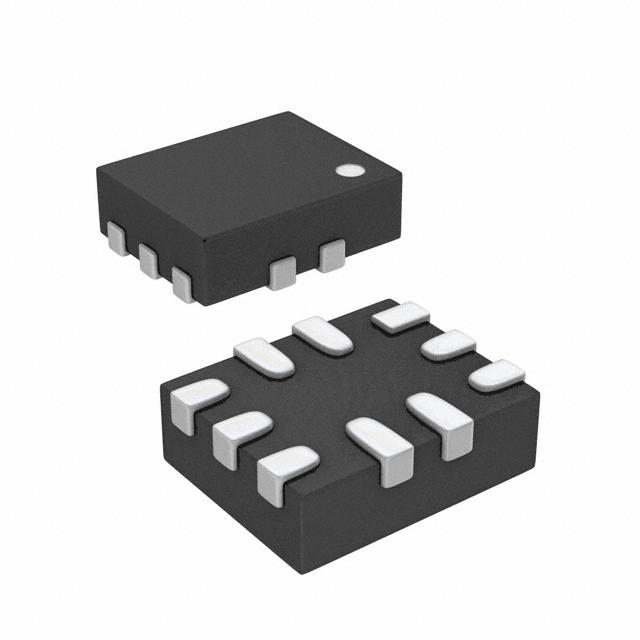

| Package / Case : |
10-UFQFN, CSP |
| Supplier Device Package : |
10-LFCSP-UQ (1.6x1.3) |
| Category : |
Analog Switches, Multiplexers, Demultiplexers IC |
| Other Part Number : |
ADG772BCPZ-REEL-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.1553 KG |
ADG772BCPZ-REEL.pdf
