| Manufacturer Part Number : |
FDD770N15A |
| Our Part Number : |
IC-FDD770N15A |
| Manufacturer : |
ON Semiconductor |
| Description : |
MOSFET N CH 150V 18A DPAK |
| Packaging : |
Tape & Reel (TR) |
| Series : |
PowerTrench? |
| Part Status : |
Active |
| FET Type : |
N-Channel |
| Technology : |
MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) : |
150V |
| Current - Continuous Drain (Id) @ 25°C : |
18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) : |
10V |
| Vgs(th) (Max) @ Id : |
4V @ 250μA |
| Gate Charge (Qg) (Max) @ Vgs : |
11nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds : |
765pF @ 75V |
| Vgs (Max) : |
±20V |
| FET Feature : |
- |
| Power Dissipation (Max) : |
56.8W (Tc) |
| Rds On (Max) @ Id, Vgs : |
77 mOhm @ 12A, 10V |
| Operating Temperature : |
-55°C ~ 150°C (TJ) |
| Mounting Type : |
Surface Mount |
| Supplier Device Package : |
D-Pak |
| Package / Case : |
TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Other Part Number : |
FDD770N15ATR-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.14593 KG |

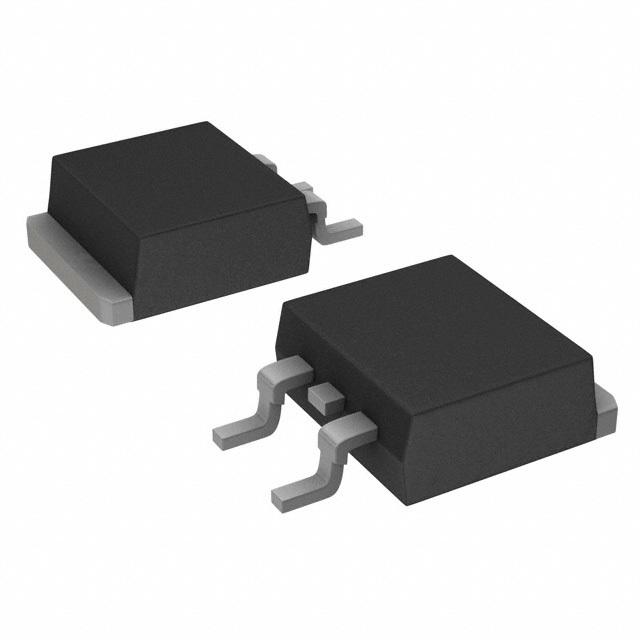

2c2520SC-63.JPG "FDD770N15A photo")
