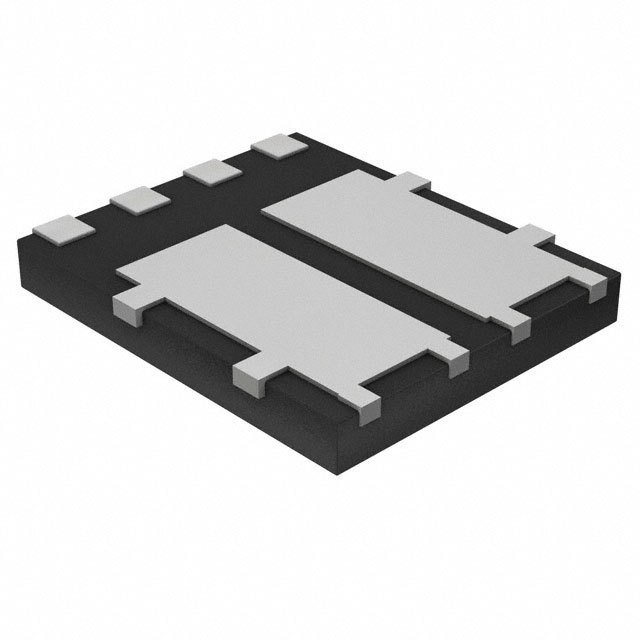

IRFH8334TR2PBF picture
Images are for reference only, please contact us for more pictures.
Manufacturer Part Number: IRFH8334TR2PBF
Our Part Number:

IC-IRFH8334TR2PBF

Product Category: MOSFETs
Manufacturer / Brand: Infineon Technologies
Brief Description: MOSFET N-CH 30V 12A 5X6 PQFN
Datasheet Download: IRFH8334TR2PBF pdf datasheetIRFH8334TR2PBF.pdf
Package Type: 8-PowerTDFN
Quantity Available: 31180 Pieces
Unit Price: Quote by Email: sales@ic-chips.com
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Moisture Sensitivity Level(MSL): 3(168 Hours)
Delivery Time: 1-2 Days
Date Code (D/C): New
Tips: Please fill the below form and we will contact you as soon as possible. Contact us by email if urgent: sales@ic-chips.com
*Buy Quantity: Target Price: (USD)
*Contact Name: Company Name:
*Email:
Phone Number: (Including the Country Code)
Message:

SpecificationsPacking PaymentShippingQuality Guarantee
Manufacturer Part Number : IRFH8334TR2PBF
Our Part Number : IC-IRFH8334TR2PBF
Manufacturer : Infineon Technologies
Description : MOSFET N-CH 30V 12A 5X6 PQFN
Packaging : Cut Tape (CT)
Series : HEXFET?
Part Status : Obsolete
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 14A (Ta), 44A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Vgs(th) (Max) @ Id : 2.35V @ 25μA
Gate Charge (Qg) (Max) @ Vgs : 15nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 1180pF @ 10V
Vgs (Max) : ±20V
FET Feature : -
Power Dissipation (Max) : 3.2W (Ta), 30W (Tc)
Rds On (Max) @ Id, Vgs : 9 mOhm @ 20A, 10V
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : PQFN (5x6)
Package / Case : 8-PowerTDFN
Other Part Number : IRFH8334TR2PBFCT-ND
Delivery Time : Ship within 1 day.
Manufacturer Production time : 6-8 weeks
Weight : 0.9082 KG
