| Manufacturer Part Number : |
CS5204-1GDPR3 |
| Our Part Number : |
IC-CS5204-1GDPR3 |
| Manufacturer : |
ON Semiconductor |
| Description : |
IC REG LINEAR POS ADJ 4A D2PAK-3 |
| Packaging : |
Tape & Reel (TR) |
| Series : |
- |
| Part Status : |
Obsolete |
| Output Configuration : |
Positive |
| Output Type : |
Adjustable |
| Number of Regulators : |
1 |
| Voltage - Input (Max) : |
17V |
| Voltage - Output (Min/Fixed) : |
1.25V |
| Voltage - Output (Max) : |
13V |
| Voltage Dropout (Max) : |
1.2V @ 4A |
| Current - Output : |
4A |
| Current - Quiescent (Iq) : |
6mA |
| Current - Supply (Max) : |
- |
| PSRR : |
82dB (120Hz) |
| Control Features : |
- |
| Protection Features : |
Over Current, Over Temperature |
| Operating Temperature : |
0°C ~ 70°C |
| Mounting Type : |
Surface Mount |

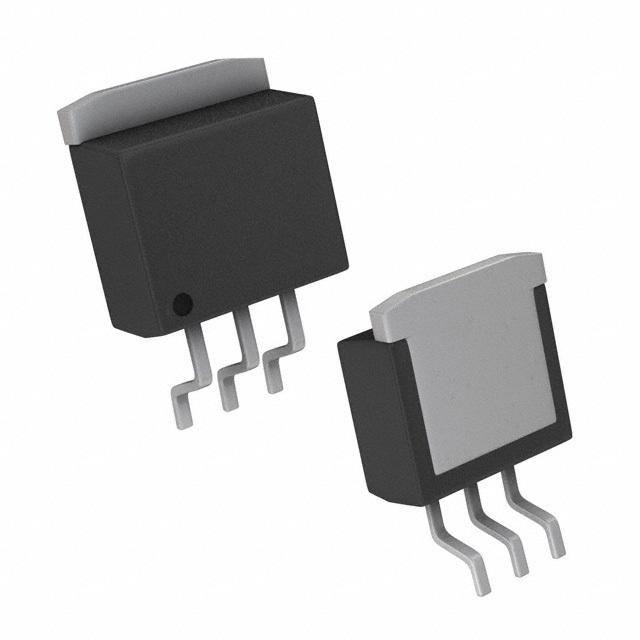

| Package / Case : |
TO-263-4, D2Pak (3 Leads + Tab), TO-263AA |
| Supplier Device Package : |
D2PAK-3 |
| Category : |
Voltage Regulators - Linear IC |
| Other Part Number : |
CS5204-1GDPR3OS-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.3961 KG |
CS5204-1GDPR3.pdf
