| Manufacturer Part Number : |
MC7808CD2TG |
| Our Part Number : |
IC-MC7808CD2TG |
| Manufacturer : |
ON Semiconductor |
| Description : |
IC REG LINEAR 8V 1A D2PAK |
| Packaging : |
Tube |
| Series : |
- |
| Part Status : |
Active |
| Output Configuration : |
Positive |
| Output Type : |
Fixed |
| Number of Regulators : |
1 |
| Voltage - Input (Max) : |
35V |
| Voltage - Output (Min/Fixed) : |
8V |
| Voltage - Output (Max) : |
- |
| Voltage Dropout (Max) : |
2V @ 1A (Typ) |
| Current - Output : |
1A |
| Current - Quiescent (Iq) : |
8mA |
| Current - Supply (Max) : |
- |
| PSRR : |
62dB (120Hz) |
| Control Features : |
- |
| Protection Features : |
Over Temperature, Short Circuit |
| Operating Temperature : |
0°C ~ 125°C |
| Mounting Type : |
Surface Mount |

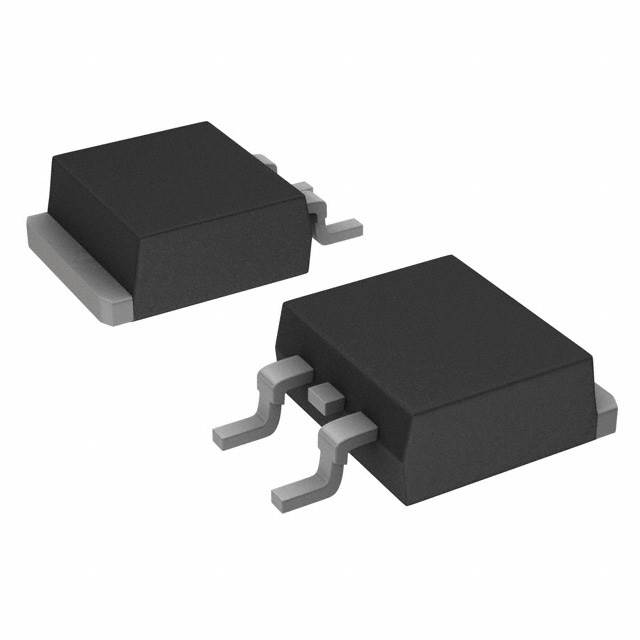

| Package / Case : |
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package : |
D2PAK |
| Category : |
Voltage Regulators - Linear IC |
| Other Part Number : |
MC7808CD2TGOS-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.15103 KG |
MC7808CD2TG.pdf
