| Manufacturer Part Number : |
LM5001SD |
| Our Part Number : |
IC-LM5001SD |
| Manufacturer : |
Texas Instruments |
| Description : |
IC REG MULT CONFIG ISO ADJ 8WSON |
| Packaging : |
Tape & Reel (TR) |
| Series : |
- |
| Part Status : |
Obsolete |
| Output Configuration : |
Step-Up, Step-Up/Step-Down |
| Output Type : |
Adjustable |
| Number of Regulators : |
1 |
| Voltage - Input (Max) : |
75V |
| Voltage - Output (Min/Fixed) : |
3.1V |
| Voltage - Output (Max) : |
76V (Switch) |
| Voltage Dropout (Max) : |
- |
| Current - Output : |
800mA (Switch) |
| Current - Quiescent (Iq) : |
50kHz ~ 1.5MHz |
| Current - Supply (Max) : |
- |
| PSRR : |
- |
| Control Features : |
- |
| Protection Features : |
Positive, Isolation Capable |
| Operating Temperature : |
-40°C ~ 125°C (TJ) |
| Mounting Type : |
Surface Mount |
| Package / Case : |

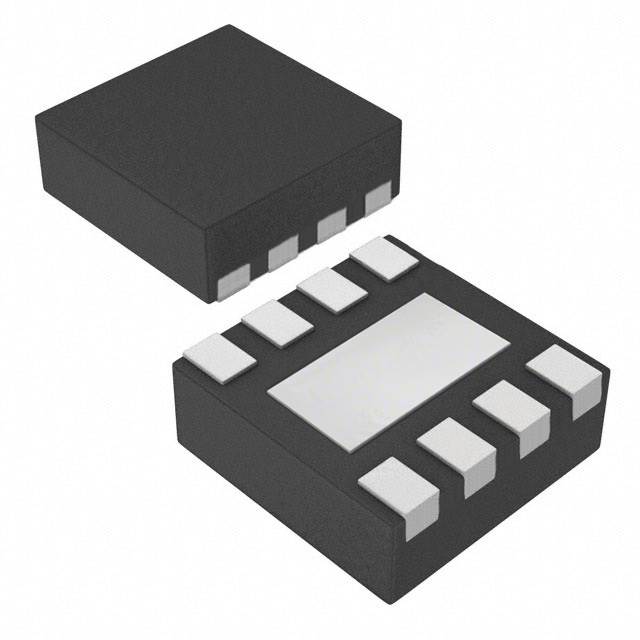

8-WDFN Exposed Pad |
| Supplier Device Package : |
8-WSON (4x4) |
| Category : |
Voltage Regulators - DC DC Switching Regulators IC |
| Other Part Number : |
LM5001SDTR-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.46097 KG |
LM5001SD.pdf
