| Manufacturer Part Number : |
T6817-TKQY |
| Our Part Number : |
IC-T6817-TKQY |
| Manufacturer : |
Microchip Technology |
| Description : |
IC DRIVER DUAL TRPL DMOS 20SSO |
| Packaging : |
Tape & Reel (TR) |
| Series : |
- |
| Part Status : |
Obsolete |
| Output Configuration : |
Half Bridge (3) |
| Output Type : |
Inductive, Capacitive, Resistive |
| Number of Regulators : |
1.5 Ohm LS (Max), 2 Ohm HS (Max) |
| Voltage - Input (Max) : |
4.5 V ~ 5.5 V |
| Voltage - Output (Min/Fixed) : |
4.5 V ~ 5.5 V |
| Voltage - Output (Max) : |
ESD, Open Load Detect, Over Temperature, Short Circuit, UVLO |
| Voltage Dropout (Max) : |
5.5 V ~ 40 V |
| Current - Output : |
600mA |
| Current - Quiescent (Iq) : |
- |
| Current - Supply (Max) : |
Status Flag |
| PSRR : |
BCDMOS |
| Control Features : |
Bulbs, DC Motors, Resistors |
| Protection Features : |
SPI |
| Operating Temperature : |
-40°C ~ 150°C (TJ) |
| Mounting Type : |
Surface Mount |

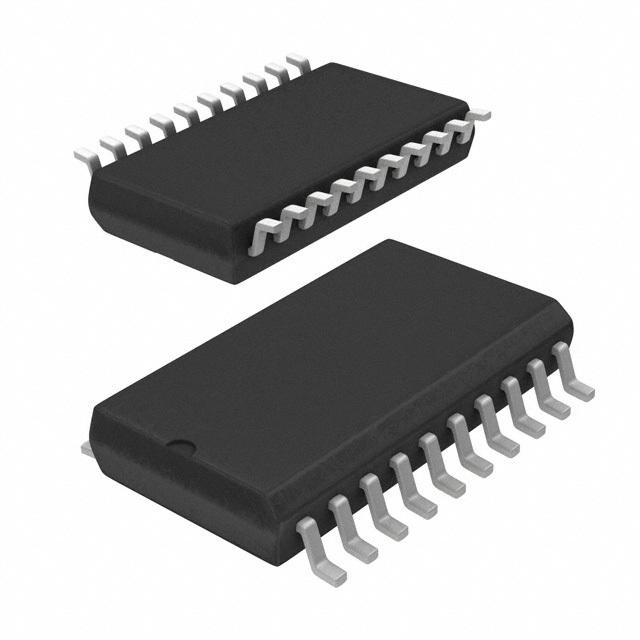

| Package / Case : |
20-LSSOP (0.173", 4.40mm Width) |
| Supplier Device Package : |
20-SSO |
| Category : |
Full, Half-Bridge Drivers IC |
| Other Part Number : |
T6817-TKQYTR-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.135732 KG |
T6817-TKQY.pdf
