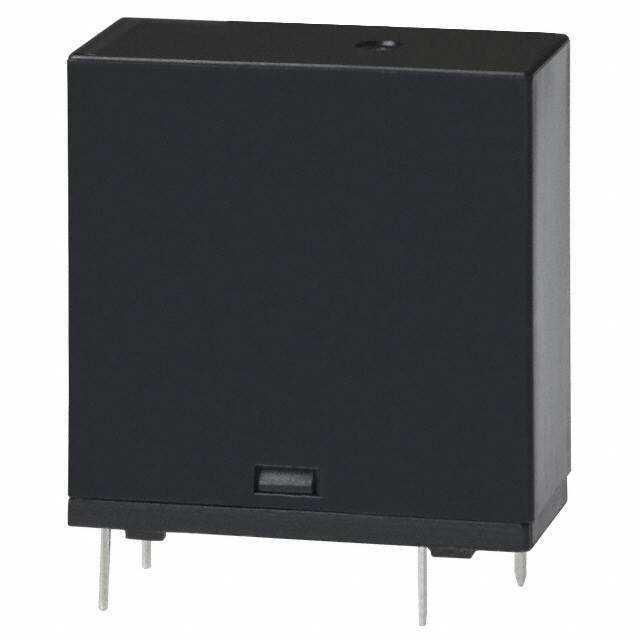

LK1AF-24V picture
Images are for reference only, please contact us for more pictures.
Manufacturer Part Number: LK1AF-24V
Our Part Number:


Product Category: Power Relays, Over 2 A
Manufacturer / Brand: Panasonic Electric Works
Brief Description: RELAY GEN PURPOSE SPST 5A 24V
Datasheet Download: LK1AF-24V pdf datasheetLK1AF-24V.pdf
Package Type: Bulk
Quantity Available: 64930 Pieces
Unit Price: Quote by Email: sales@ic-chips.com
Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Moisture Sensitivity Level(MSL): 3(168 Hours)
Delivery Time: 1-2 Days
Date Code (D/C): New
Tips: Please fill the below form and we will contact you as soon as possible. Contact us by email if urgent: sales@ic-chips.com
*Buy Quantity: Target Price: (USD)
*Contact Name: Company Name:
Phone Number: (Including the Country Code)
SpecificationsPacking PaymentShippingQuality Guarantee
Manufacturer Part Number : LK1AF-24V
Our Part Number : IC-LK1AF-24V
Manufacturer : Panasonic Electric Works
Packaging : Bulk
Series : LK
Part Status : Obsolete
Relay Type : General Purpose
Coil Type : Non Latching
Coil Current : 22.1mA
Coil Voltage : 24VDC
Contact Form : SPST-NO (1 Form A)
Contact Rating (Current) : 5A
Switching Voltage : 277VAC, 30VDC - Max
Turn On Voltage (Max) : 16.8 VDC
Turn Off Voltage (Min) : 2.4 VDC
Operate Time : 15ms
Release Time : 5ms
Features : Sealed - Flux Protection
Mounting Type : Through Hole
Termination Style : PC Pin
Operating Temperature : -40°C ~ 70°C
Other Part Number : 255-1267-ND
Delivery Time : Ship within 1 day.
Manufacturer Production time : 6-8 weeks
Weight : 0.6451 KG
