| Manufacturer Part Number : |
VS-ST300C18C0 |
| Our Part Number : |
IC-VS-ST300C18C0 |
| Manufacturer : |
Vishay Semiconductor Diodes Division |
| Description : |
SCR PHASE CONT 1800V 650A E-PUK |
| Packaging : |
Bulk |
| Series : |
- |
| Part Status : |
Active |
| Voltage - Off State : |
1.8kV |
| Voltage - Gate Trigger (Vgt) (Max) : |
3V |
| Current - Gate Trigger (Igt) (Max) : |
200mA |
| Voltage - On State (Vtm) (Max) : |
2.18V |
| Current - On State (It (AV)) (Max) : |
650A |
| Current - On State (It (RMS)) (Max) : |
1290A |
| Current - Hold (Ih) (Max) : |
600mA |
| Current - Off State (Max) : |
50mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) : |
8000A, 8380A |
| SCR Type : |
Standard Recovery |
| Operating Temperature : |
-40°C ~ 125°C |
| Mounting Type : |
Chassis Mount |

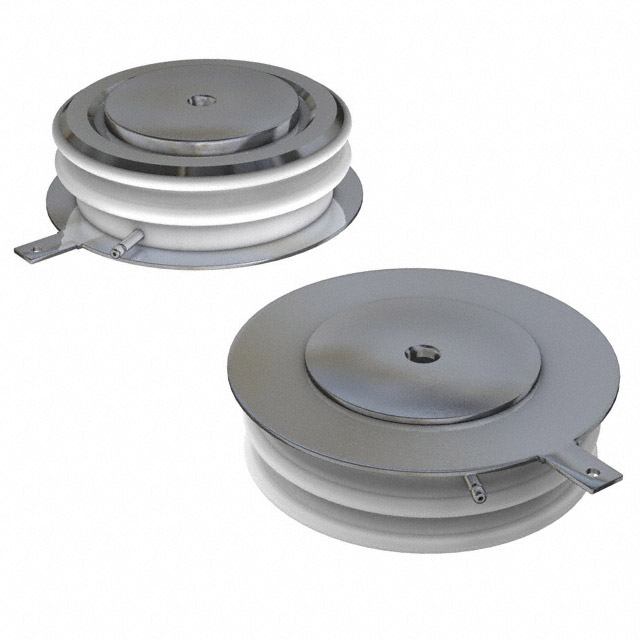

| Package / Case : |
TO-200AB, E-PUK |
| Supplier Device Package : |
TO-200AB (E-Puk) |
| Other Part Number : |
VS-ST300C18C0-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.2041 KG |
VS-ST300C18C0.pdf
