| Manufacturer Part Number : |
KSD1273Q |
| Our Part Number : |
IC-KSD1273Q |
| Manufacturer : |
ON Semiconductor |
| Description : |

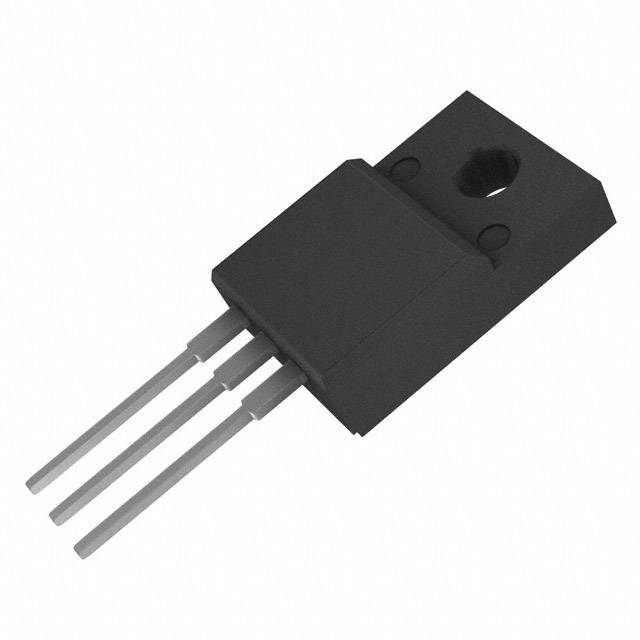

Transistor NPN 60V 3A TO-220F |
| Packaging : |
Bulk |
| Series : |
- |
| Part Status : |
Obsolete |
| Transistor Type : |
NPN |
| Current - Collector (Ic) (Max) : |
3A |
| Voltage - Collector Emitter Breakdown (Max) : |
60V |
| Vce Saturation (Max) @ Ib, Ic : |
1V @ 50mA, 2A |
| Current - Collector Cutoff (Max) : |
100μA |
| DC Current Gain (hFE) (Min) @ Ic, Vce : |
500 @ 500mA, 4V |
| Power - Max : |
2W |
| Frequency - Transition : |
30MHz |
| Operating Temperature : |
150°C (TJ) |
| Mounting Type : |
Through Hole |
| Package / Case : |
TO-220-3 Full Pack |
| Supplier Device Package : |
TO-220F |
| Other Part Number : |
KSD1273Q-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.8891 KG |
KSD1273Q.pdf
